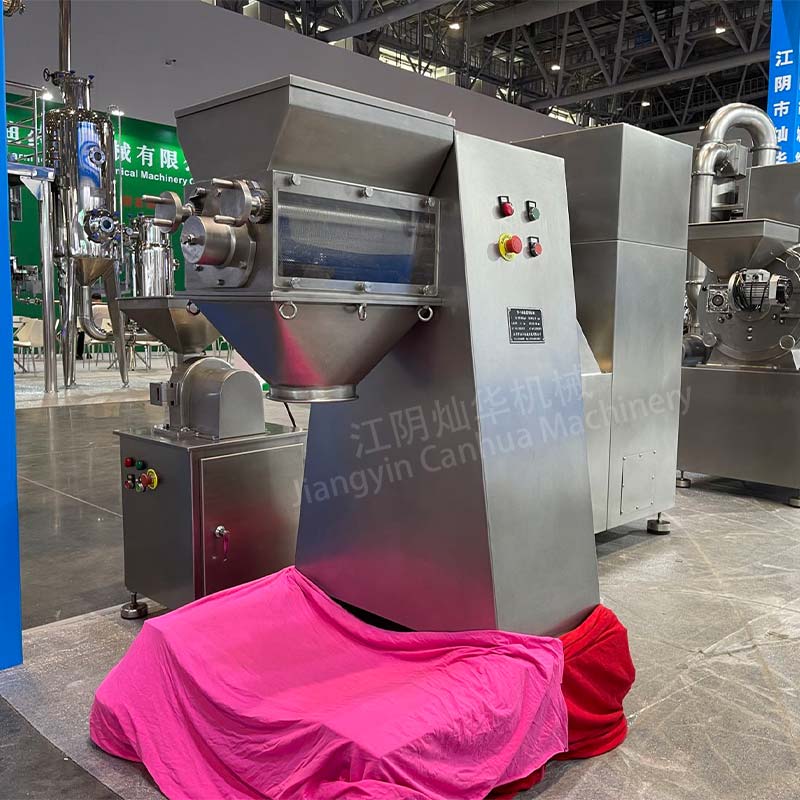

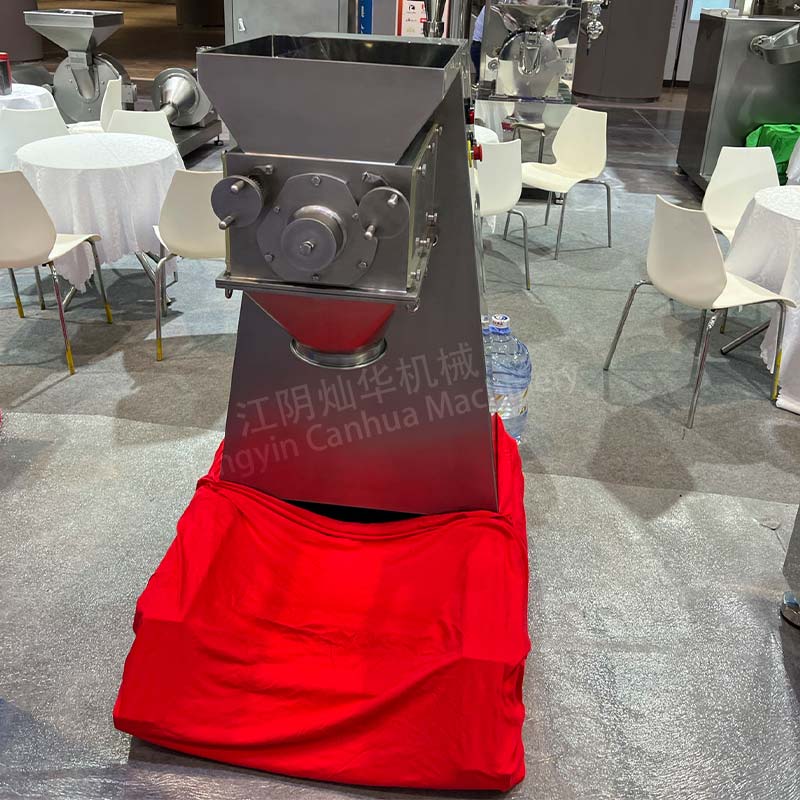

Oscillating Granulator For Wet Chemical Granules
Oscillating Granulator for Wet Chemical Granules Features：
Principle:
Oscillating granulator through the motor-driven hob reciprocating rotation, the wet powder or crushed dry material will be forced to squeeze through the screen, forming granules; the screen mesh can be adjusted to meet the needs of different specifications, and is equipped with a self-developed waste discharge structure to prevent material contamination. Its production capacity varies with the material characteristics (moisture, viscosity, etc.) and the mesh size of the screen, which is suitable for diversified pelletizing scenarios.
Product Characteristics:
1. The equipment has a compact structure and is easy to clean.
2. High capacity, low energy consumption, can meet most of the production needs. 2. simple operation, the first use of the machine.
3. The operation is simple, the first-time users can also quickly get started.
4. The material contact places are all made of high-quality stainless steel and polished, which meets the GMP requirements.
5. The particle size and density of the granules can be controlled by adjusting the tightness and looseness of the sieve mesh and the rotating speed of the drum.
6. It can not only develop the moist powder into the required granule, but also pulverize the blocky dry material into the required granule. It is suitable for manufacturing various specifications of granules in pharmaceutical, chemical, food and other industries.
7. The mechanical transmission system of this equipment is all enclosed in the body with a lubrication system, and the whole machine runs smoothly. Moreover, its parts are very easy to assemble and disassemble, which is convenient for maintenance and repair.
Specification
| Model | YK-60 | YK-100 | YK-160 | YK-250 |
| Throughput(Kq/batch) | 5~30 | 30~200 | 100~300 | 150~400 |
| Power(Kw) | 0.37 | 1.1 | 2.2 | 5.5 |
| Roller speed（Rpm) | 46 | 55 | 55 | 40 |
| Swing Angle (▫) | 360 | 360 | 360 | 360 |
| Roller Diameter (mm) | Φ60 | Φ120 | Φ160 | Φ250 |
| Overall Dimensions (L×W×H) mm) | 330×550×570 | 700×400×1050 | 1000×800×1300 | 1300×920×1500 |
| Weight (Kg) | 70 | 280 | 380 | 550 |
Canhua Machinery Co., Ltd. specializes in the production of preliminary processing equipment for powders and granules, including powder mixers, powder grinders, oscillating granulators, powder sieving machines, etc. These equipment are capable of grinding a variety of materials and are ideal for a variety of industries.
